Space Base Energy
Understanding and testing the interactions of distributed energy systems is essential for mission success
Space Base Energy Library simulates all the energy systems you can imagine
SpaceBase Energy Library is your advanced simulation library for energy system interactions in Modelica-SimulationX, specifically designed for space applications. It empowers energy engineers to analyze, optimize, and validate their energy architectures in extreme environments.
With models for power generation, storage, distribution, and consumption, the library provides all the components necessary for dynamic system simulation and energy management testing. Advanced control, regulation, and fault tolerance features enable in-depth functional verification, reliability assessments, and resilience testing under diverse operational conditions.
Robust, adaptable, and extensible – ready for your next space mission
Your benefits of using Space Base Energy
Significantly speed up your planning process with Space Base Energy. Develop efficient and reliable system designs. Control your investment and operational costs.
Optimization of efficiency and operating costs
Quantitative evaluation of multivalent influencing factors
Variant studies and What-if analysis
Risk-free system evaluation for control strategies
Typical Tasks Where Space Base Energy Helps Our Customers
- Design & Evaluation of interconnected energy systems (generator – storage – consumer)
- Optimization of control functions in energy systems
- Analyzing of sector coupling (heating/cooling – electrical energy – mobility)
- Studying the interaction between energy supply and mobility requirements
- Model-predictive control
Simulation Models
The Space Base Energy Library contains our technical Know-How and more than 15 years of experience in energy systems simulation. We continuously improve it to provide the best results for state-of-the-art consulting to our customers.
Some of the available component models:
- Renewable Energies (Solar, Biogas and more)
- Energy storages
- Heat Pumps
- Controller
- HVAC
- E-Mobility, Charging Stations and Vehicles
- Hydrogen
- Grids
- Global Weather Data
- Heat Exchangers, CoolingTower, Ground Collector
- Cost Calculation
Example model of a single family home with heat pump, photovoltaics, storage, wind generator, electric vehicle and stationary battery
Space Base Energy Extensions
To solve even more problems, Green City has available extensions for your use cases. These extensions allow a more detailed evaluation of specific energy systems. Many of our customers also use private extensions covering their special tasks and IP.
What makes Space Base Energy outstanding?
The practical application of the Space Base Energy Library means that it is constantly reviewed and tested by trained engineers.
Practical Orientation
Interdisciplinarity
Ready-to-use and Pre-Parameterized
Flexible and Extensible
Use Cases

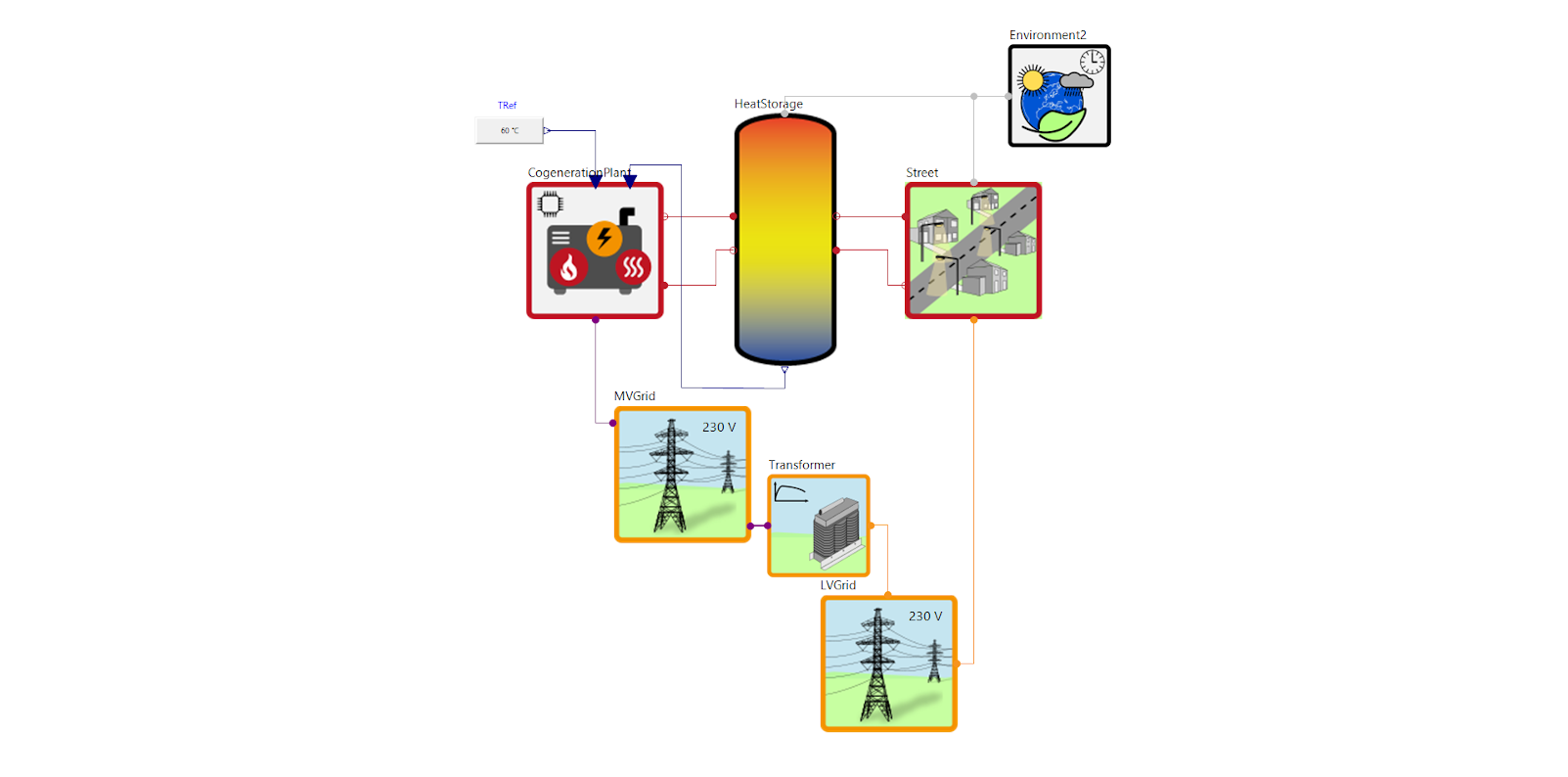

Combined Heat And Power Plant For A Building District
The model shows a simplified heat, warm water and electrical energy consumer which is supplied by a combined heat and power plant. The consumption is defined via time-tables. A heat storage serves to buffer load peaks. It can be observed in the simulation, that the power plant cannot continuously meet the electrical load without electrical energy storage.

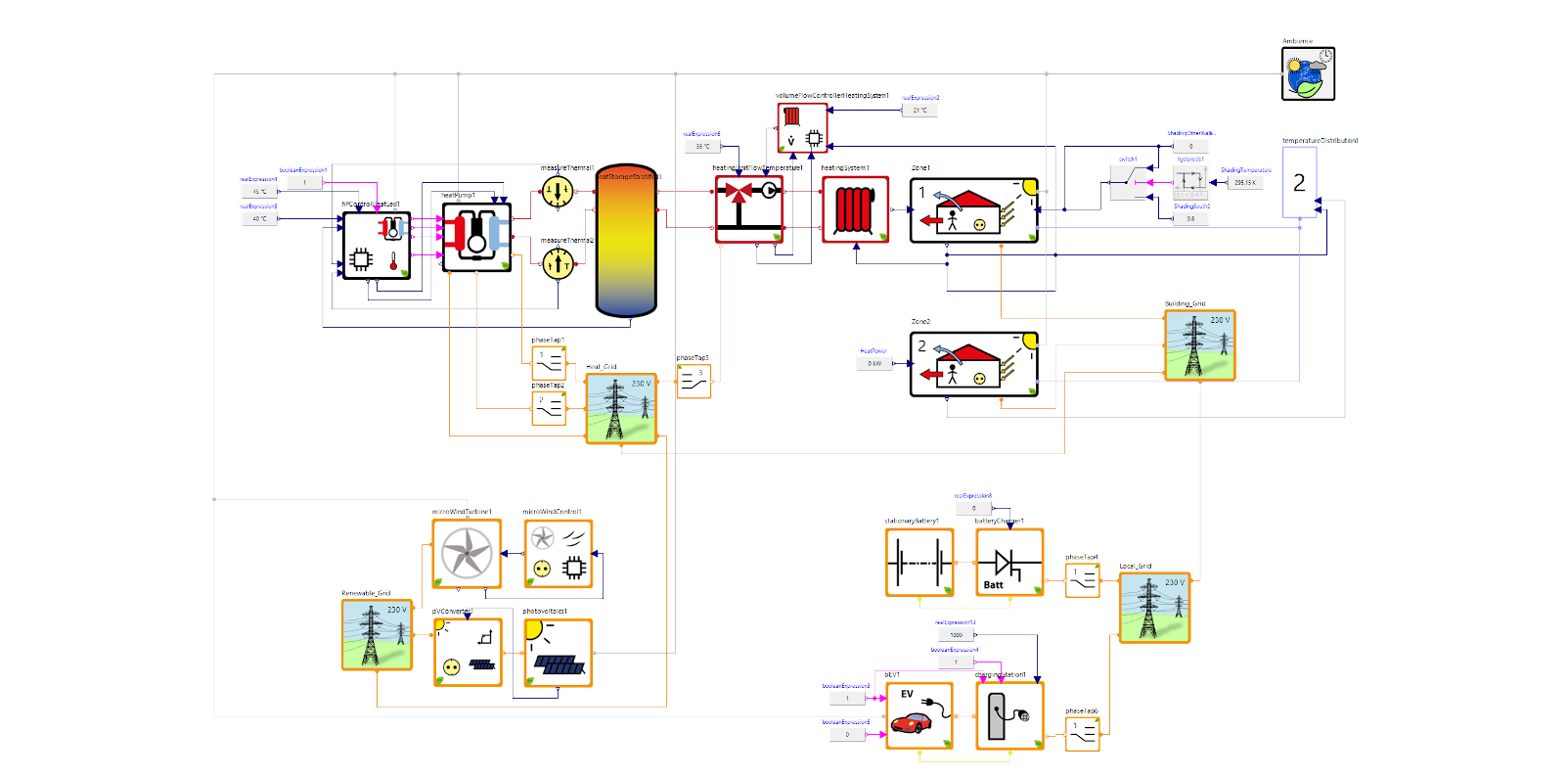

Multi-Zone Building With Electrical Vehicles
Model of a building with 2 thermal zones and an electric vehicle including its own charging station and battery. The model calculates the thermal behaviour of the building through the balance of all heat quantities (transmission, internal loads, solar radiation). Electrical power is provided by a photovoltaic system and a small wind power plant. An air/water heat pump provides the building with heat.

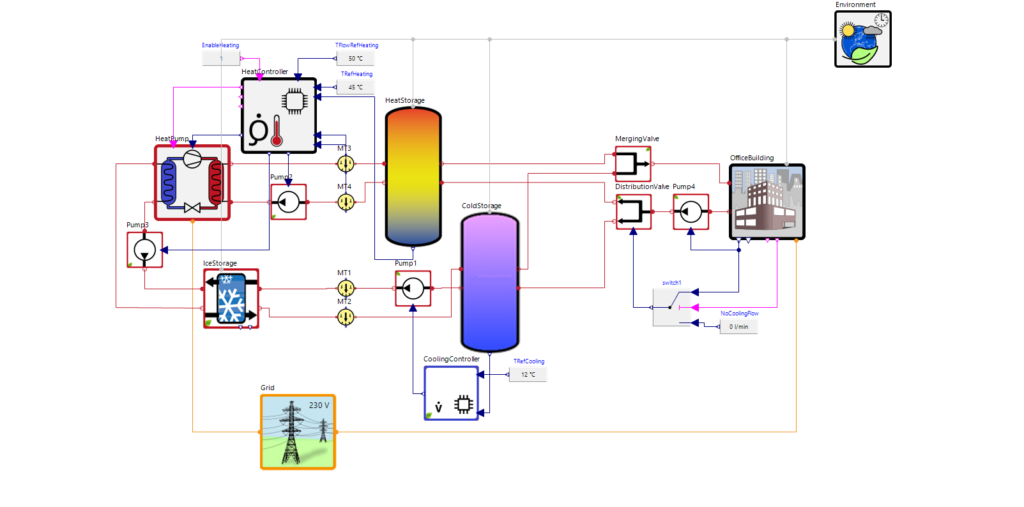

Office Building With Ice Storage
The model contains an office building with a heating and a cooling load. A heat pump produces heat, which is stored in the heat storage, as well as cold which is used for the building cooling load. The cooling energy is stored in an ice storage for seasonal storage and in a cold storage for short-term use.

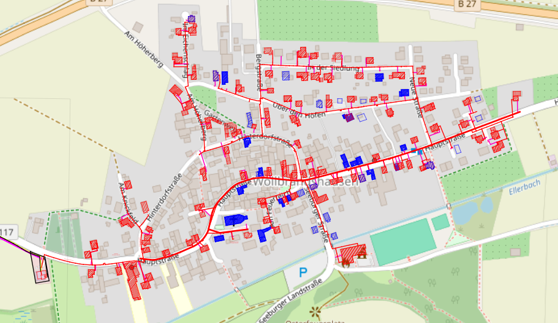

District Heating Grid

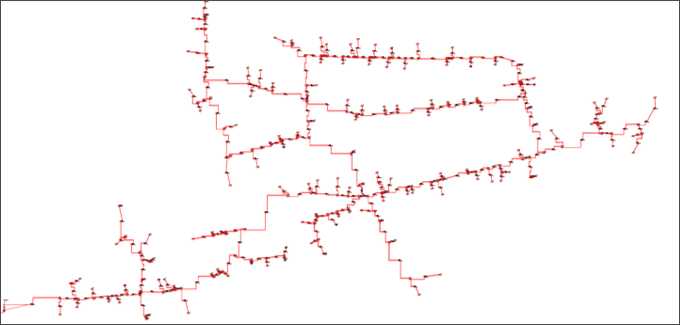

The model represents a district heating grid with all pipes, house connection stations and heat generators. The thermal and hydraulic properties of each component can be simulated in the grid, enabling analysis and optimization of critical grid nodes over the course of a year. This detailed grid model serves as the foundation for all further transformations towards a sustainable district heating grid.
